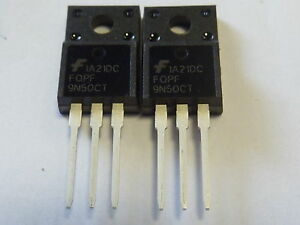

9N50

Type Designator: 9N50

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 44 W

Maximum Drain-Source Voltage |Vds|: 500 V

Maximum Gate-Source Voltage |Vgs|: 30 V

Maximum Drain Current |Id|: 9 A

Maximum Junction Temperature (Tj): 150 °C

Rise Time (tr): 65 nS

Drain-Source Capacitance (Cd): 130 pF

Maximum Drain-Source On-State Resistance (Rds): 0.7 Ohm

Package: TO-220F
